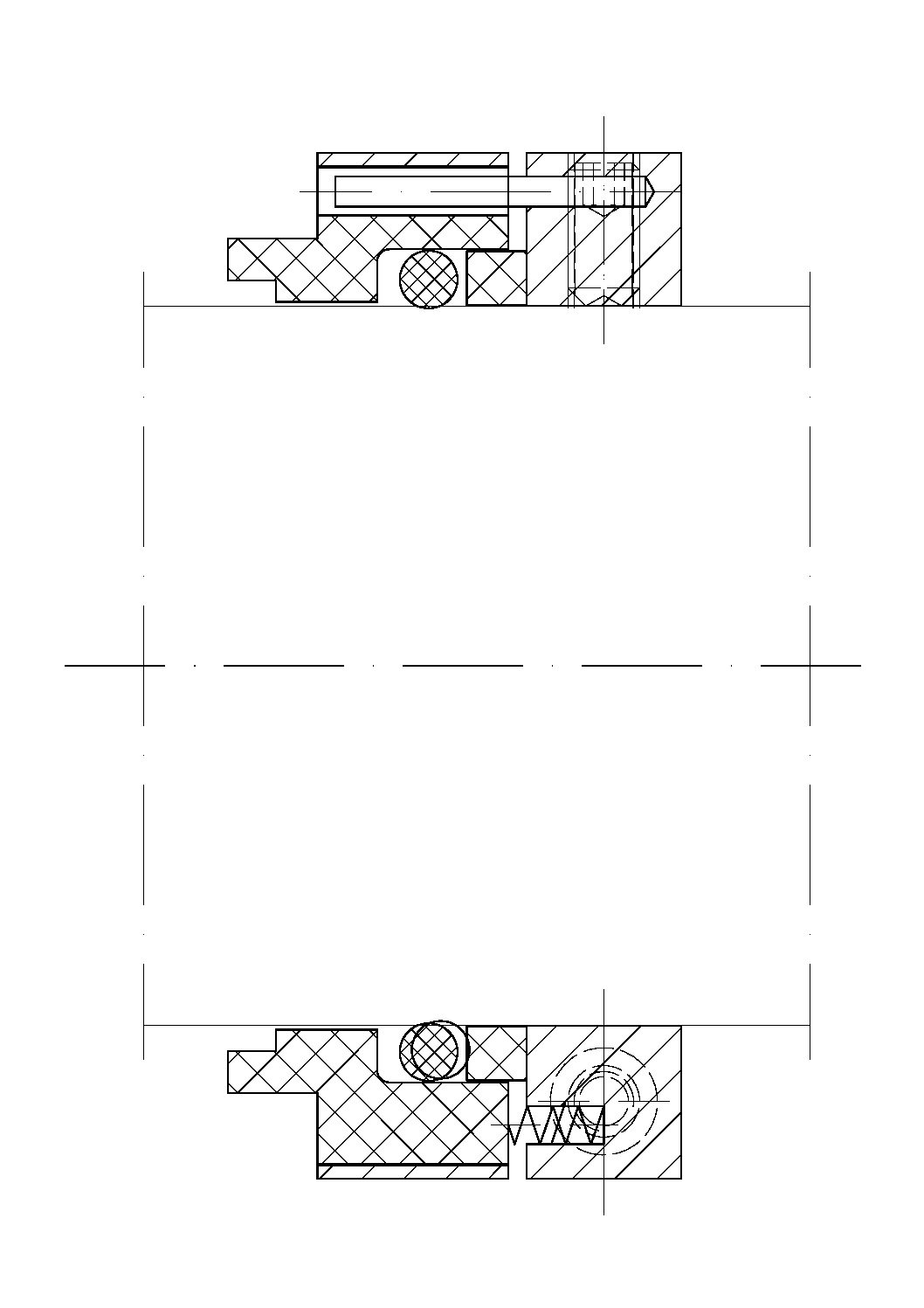

Type 600

Outboard pump mechanical seal, especially for corrosive and chemical medium. Connection/ stationary seal ring (L-shaped) according to ISO3069.
Designs:
– 600L (Cartiridge mechanical seal for glass lined vessels)
– 600LL (Cartiridge mechanical seal for glass lined vessels with bearing)
– 600MDS/MDA (dry-running component mechanical seal)
All sizes are available in inch too
It is not allowed to use all max. parameters at the same time!

Wave:

Min: 24 mm

Max: 110 mm

Pressure:

Min: 0 bara

Max: 10 bar

Temperature:

Min: -50‎°C

Max: 220‎°C
