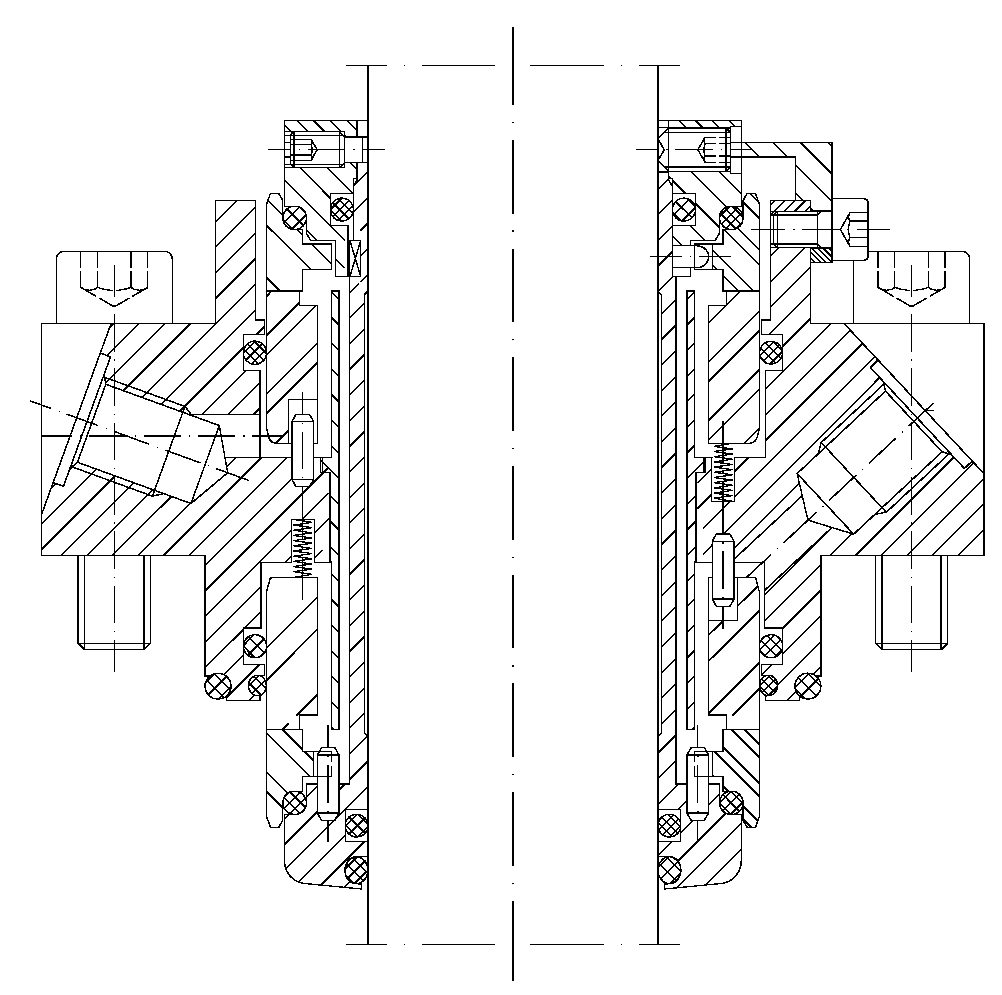

Type 577

Short designed agitator mechanical seal, double acting
Designs:
– 577 without bearing
– 577BCL with bearing
– 577G with bellows to absorb axial travels
ATEX on request (depends on parameters)
All sizes are available in inch too
It is not allowed to use all max. parameters at the same time!

Wave:

Min: 30 mm

Max: 200 mm

Pressure:

Min: 0 bara

Max: 20 bar

Temperature:

Min: -60‎°C

Max: 250‎°C
